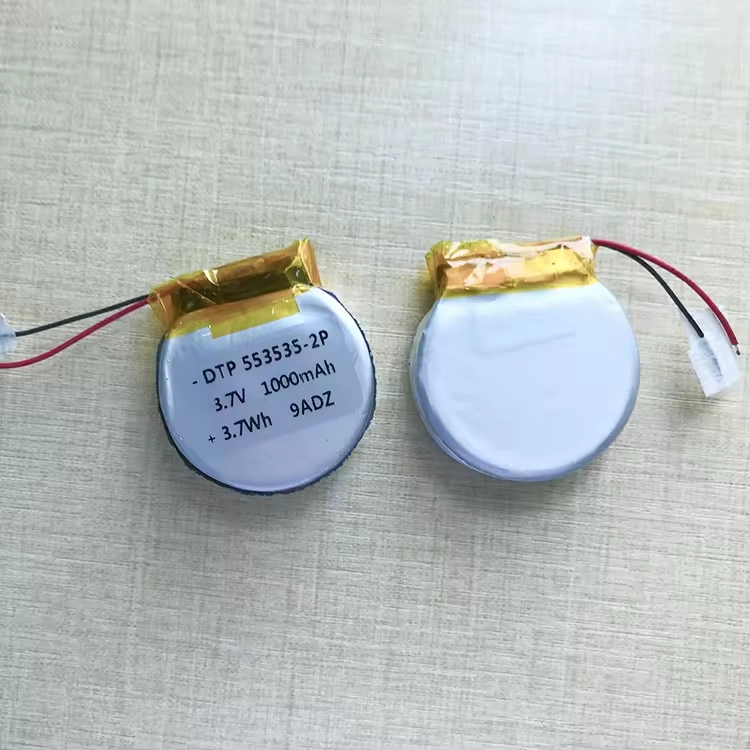

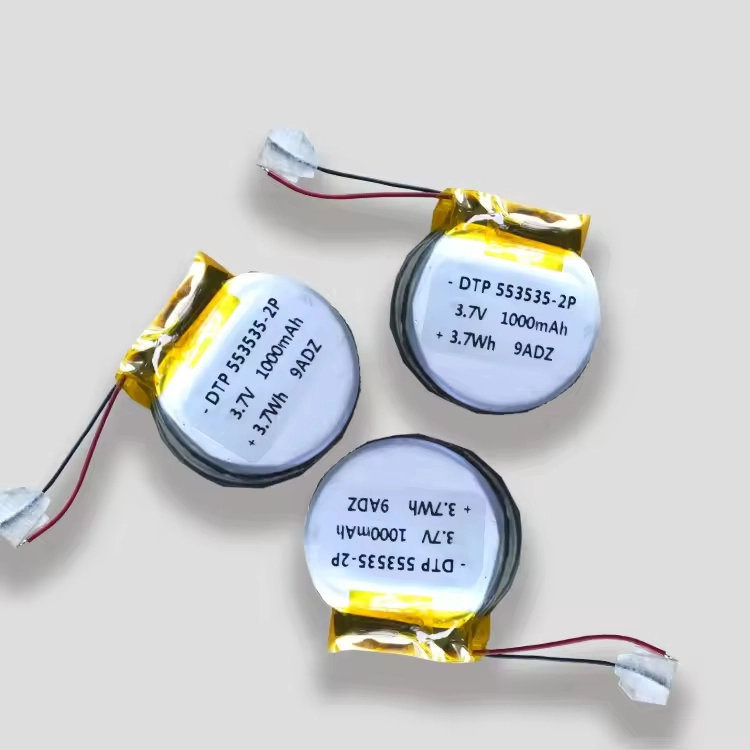

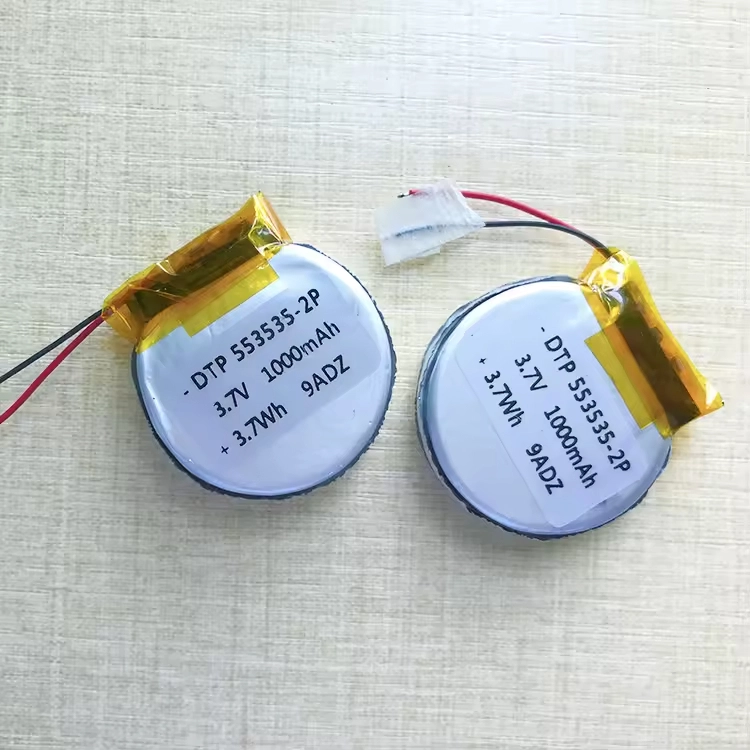

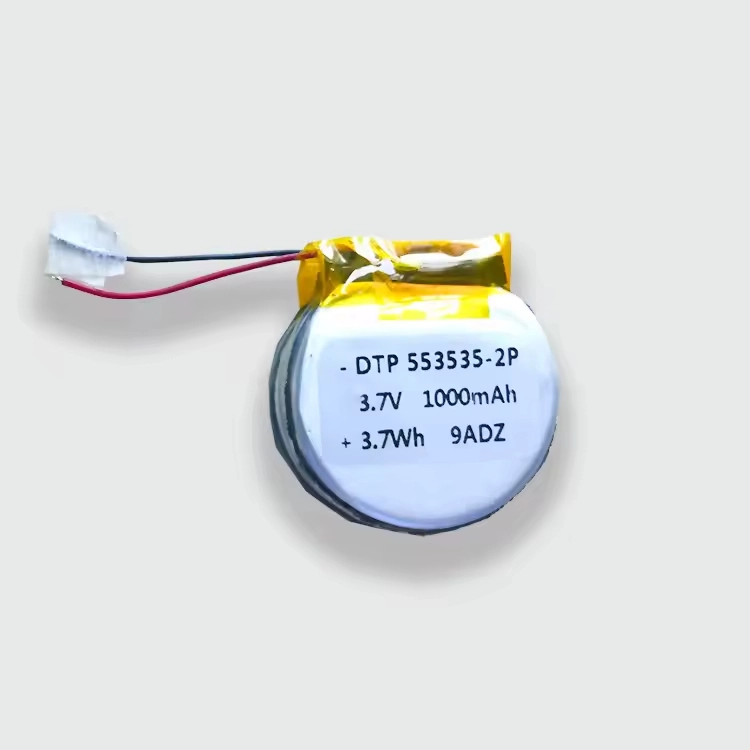

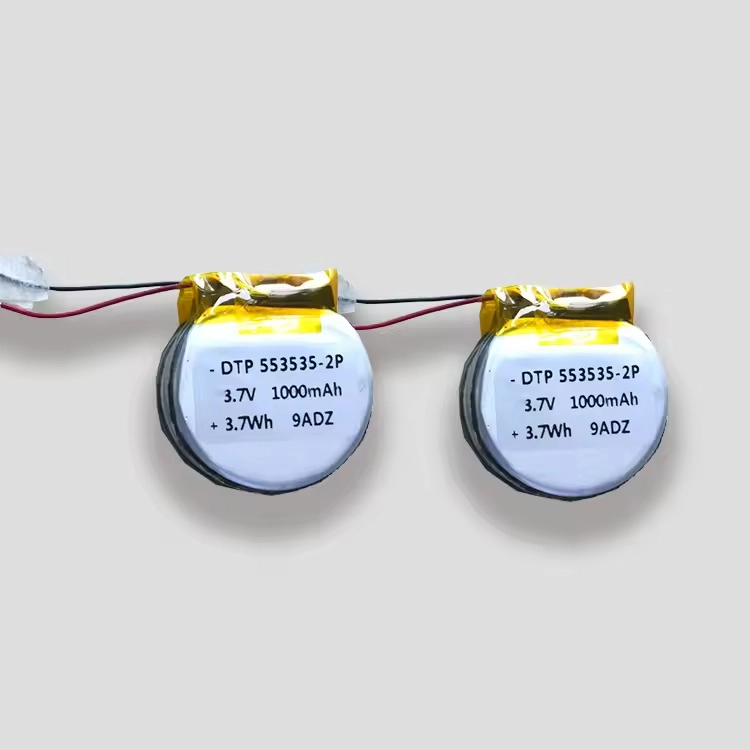

Custom Lithium Polymer Batteries DTP 553535-2P 3.7v 1000mAh Round Rechargeable Lipo Battery For Electric Devices
| Battery model | DTP553535-2P | |
| Nominal voltage | 3.7V | |
| Minimum capacity | 1000mAh(0.2C discharge) | |
| Charging voltage | 4.2V | |
| Discharging cut-off voltage | 3.0V | |
| Standard charging | 0.2C /4.2V | |
| Max charging | 1.0C /4.2V | |
| Standard discharging | 0.2C/3.0V | |
DTP 553535-2P 3.7v 1000mAh Round Rechargeable Lipo Battery For Electric Devices
Product specification:
|
Items |
Parameter | |
| Battery model | DTP553535-2P | |
| Nominal voltage | 3.7V | |
| Minimum capacity | 1000mAh(0.2C discharge) | |
| Charging voltage | 4.2V | |
| Discharging cut-off voltage | 3.0V | |
| Standard charging | 0.2C /4.2V | |
| Max charging | 1.0C /4.2V | |
| Standard discharging | 0.2C/3.0V | |
| Max discharging | continuous discharge | 1.0C/3.0V |
| non-continuous discharge | 2.0C/3.0V | |
| Shipment voltage | ≥3.85V | |
| Battery pack impedance | ≤80mΩ | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp,
recoverable capacity in % vs time ) |
-10℃~25℃ | (12 months ≥85% ) |
| -10℃ ~45℃ | (6 months ≥85% ) | |
| -10℃~55℃ | (1 month ≥90% ) | |
| 20±5℃ is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks,
bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
|
| Reference standard | GB/T 18287-2013,KC CE ROHS IEC/EN61960, UL1642 | |
